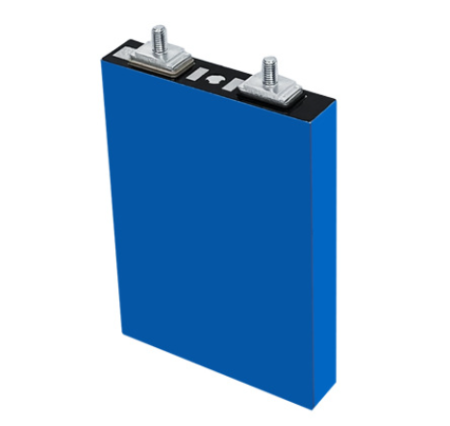

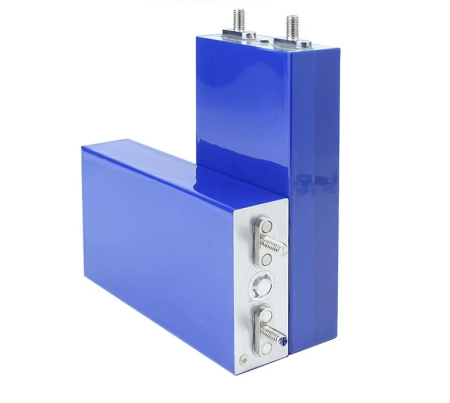

2.2 Model: HW 38120L/S
3-1 Nominal Capacity: 10000mAh
3-2 Rated voltage 3.2V
3-3 Energy density (Wh/kg) 105
3-4 Internal Resistance ≤4mΩ
3-5 Charge (CC-CV)
Charged with constant current to 3.65v and
then charged with constant voltage to
0.1-0.2A
3-6 Charge (float) ≤3.6V
3-7 Max. charging current 3C(30A)
3-8 Standard. charging voltage 3.65±0.05V
3-9 Recommended charging current 0.5C, 5A ×2hours
3-10 Max. continuous discharging current 3C (30A)-10C(100A)
3-11 Max.pulse discharging current(30seconds) 15C(150A)
Recommended discharging current 1C(10A)
3-12 Max. End-off discharged voltage 2.0V
3-13 Self discharge rate (monthly) 2-3%
3-14 Dimensions (mm)
Diameter 38±1
Height 38120L:122±1; 38120S:132±1
3-15 Weight (Approx.) 38120L:300g; 38120S: 330g
3-16
Working
temperature
Charging 0~45℃
Discharging -20~65℃
3-17
Storage
temperature
In one month -20~45℃
In six months -20~35℃
